Commodity Production Costs Report

Gaseous and Liquid Oxygen Production

Oxygen Operating Costs & Plant Construction Costs

800 MM Nm3/y United States-based plant | 107 Pages | Issue B | Q3 2024
Starting at $799 USD | See Report Editions Prices

This report examines the economics of a typical cryogenic distillation process for Oxygen production in a plant located in the United States, using atmospheric air as the starting material. The process presented in this report also produces argon as by-product. Nitrogen and the majority of the Oxygen produced are supplied in gaseous phase. Oxygen is also supplied in liquid phase, as well as all argon produced.

The report provides a comprehensive study of Oxygen production and related Oxygen production cost, covering three key aspects: a complete description of the Oxygen production process examined; an in-depth analysis of the related Oxygen plant capital cost (Capex); and an evaluation of the respective Oxygen plant operating costs (Opex).

The Oxygen production process description includes a block flow diagram (BFD), an overview of the industrial site installations, detailing both the process unit and the necessary infrastructure, process consumption figures and comprehensive process flow diagrams (PFD). The Oxygen plant capital cost analysis breaks down the Capex by plant cost (i.e., ISBL, OSBL and Contingency); owner's cost; working capital; and costs incurred during industrial plant commissioning and start-up. The Oxygen plant operating costs analysis covers operating expenses, including variable costs like raw materials and utilities, and fixed costs such as maintenance, labor, and depreciation.

Key reference(s): ?

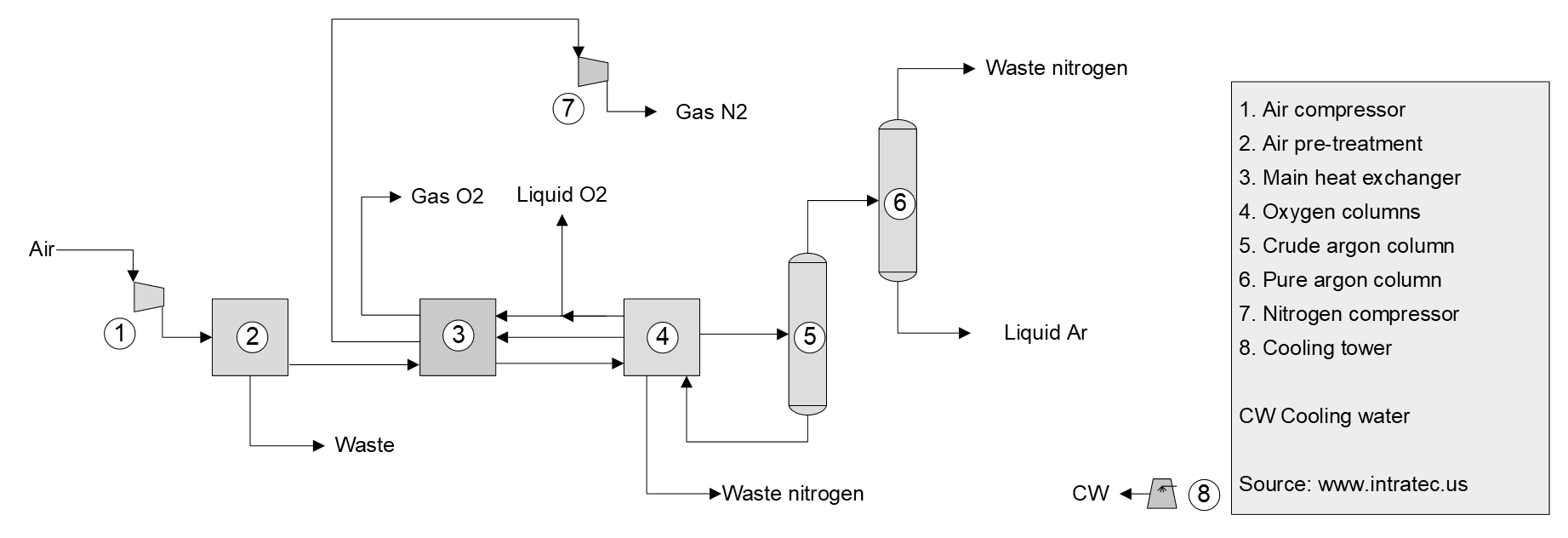

Oxygen Production Cost Report Process Schematic

The process under analysis comprises three major sections: (1) Purification; (2) Refrigeration; and (3) Rectification.

Feed preparation. Initially, the air is purified from dust particles, carbon dioxide and water. This is accomplished by compressing the air, passing it through a heat exchanger (causing water condensation) and then through an adsorbent bed of molecular sieve for the removal of water, carbon dioxide and traces of other impurities

Refrigeration. At this point the purified air is cooled down/liquefied, as required for rectification steps downstream. This step is conducted in a plate-fin heat exchanger, using refrigeration values contained in the products (oxygen, nitrogen) and waste (nitrogen) streams.

Rectification. The last step consists in submitting the cooled/liquified air to a fractional distillation carried out in two columns for nitrogen-oxygen separation, operating at different pressures, in such a way that nitrogen is distilled as a vapor and Oxygen is obtained both as vapor and liquid. In addition, since Oxygen and argon have close boiling points, a third column is used exclusively for the removal of argon, which is sent with some contaminants to a fourth column where it is separated as a liquid by-product.

Report in PDF Format
Download & Explore Anytime
Access in Various Devices
Print & Read Comfortably
Share With Co-workers

Up-to-date Report

Professional report based on Q3 2024 economic data, ensuring timely evaluations.

Multiple Use Cases

Ideal for investment screening, feasibility studies, cost estimates, and research planning.

Proven Methodology

Developed using a consistent methodology honed over a decade, ensuring reliable cost analyses.

Report Editions

Compact



$799

USD

Select

Table of Contents


Features
  • Production Process Information
  • Process Consumptions
  • Labor Requirements
  • Plant Capital Cost Summary
  • Operating Cost Summary
  • Production Costs Datasheet
  • See All Features

 80 Pages | 22 Tables | 9 Images

Read-only Online PDF Format

Updated with Q3 2024 Data

Detailed



$1,599

USD

Select

Table of Contents


Features
  • Production Process Information
  • Process Consumptions
  • Labor Requirements
  • Plant Capital Cost Summary
  • Operating Cost Summary
  • Production Costs Datasheet
  • Plant Capital Cost Details
  • Operating Cost Details
  • See All Features

 90 Pages | 28 Tables | 13 Images

Downloadable PDF Format

Updated with Q3 2024 Data

Most Popular
Premium

Starting at

$2,699

USD

Select

Table of Contents


Features
  • Production Process Information
  • Process Consumptions
  • Labor Requirements
  • Plant Capital Cost Summary
  • Operating Cost Summary
  • Production Costs Datasheet
  • Plant Capital Cost Details
  • Operating Cost Details
  • Plant Cost Breakdowns
  • Plant Capacity Assessment
  • Process Flow Diagrams
  • Costs in Different Countries Add-on
  • See All Features

  • 107 Pages | 34 Tables | 22 Images
  • Print-enabled PDF Format Add-on
  • Updated with Q3 2024 Data
  • Share with Co-workers
  • Technical Support via Email

Content Highlights

Plant Capital Cost Summary

Summary outlining the capital cost required for building the Oxygen production plant examined.

Plant Capital Cost Details

Detailing of fixed capital (ISBL, OSBL & Owner’s Cost), working capital and additional capital requirements.

Plant Cost Breakdowns

Breakdown of Oxygen process unit (ISBL) costs and infrastructure (OSBL) costs; plant cost breakdown per discipline.

Operating Costs Summary

Summary presenting the operating variable costs and the total operating cost of the Oxygen production plant studied.

Operating Cost Details

Detailing of utilities costs, operating fixed costs and depreciation.

Plant Capacity Assessment

Comparative analysis of capital investment and operating costs for different Oxygen plant capacities.

Production Process Information

Block Flow Diagram, descriptions of process unit (ISBL) and site infrastructure (OSBL).

Process Consumptions

Raw materials and utilities consumption figures, by-products credits, labor requirements

Process Diagrams

Process flow diagrams (PFD), equipment list and industrial site configuration
