Commodity Production Costs Report

PG Ethylene from Ethanol (Similar to Braskem Process)

Ethylene Operating Costs & Plant Construction Costs

250 kta United States-based plant | 107 Pages | Issue N | Q3 2024
Starting at $799 USD | See Report Editions Prices

This study presents the costs associated with Green Polymer Grade (PG) Ethylene production from ethanol in the United States using a process similar to the processes developed by Braskem and Petrobras. In this process, the reaction system is composed of multiple reactors and multiple furnaces.

The report provides a comprehensive study of Ethylene production and related Ethylene production cost, covering three key aspects: a complete description of the Ethylene production process examined; an in-depth analysis of the related Ethylene plant capital cost (Capex); and an evaluation of the respective Ethylene plant operating costs (Opex).

The Ethylene production process description includes a block flow diagram (BFD), an overview of the industrial site installations, detailing both the process unit and the necessary infrastructure, process consumption figures and comprehensive process flow diagrams (PFD). The Ethylene plant capital cost analysis breaks down the Capex by plant cost (i.e., ISBL, OSBL and Contingency); owner's cost; working capital; and costs incurred during industrial plant commissioning and start-up. The Ethylene plant operating costs analysis covers operating expenses, including variable costs like raw materials and utilities, and fixed costs such as maintenance, labor, and depreciation.

Key reference(s): ?

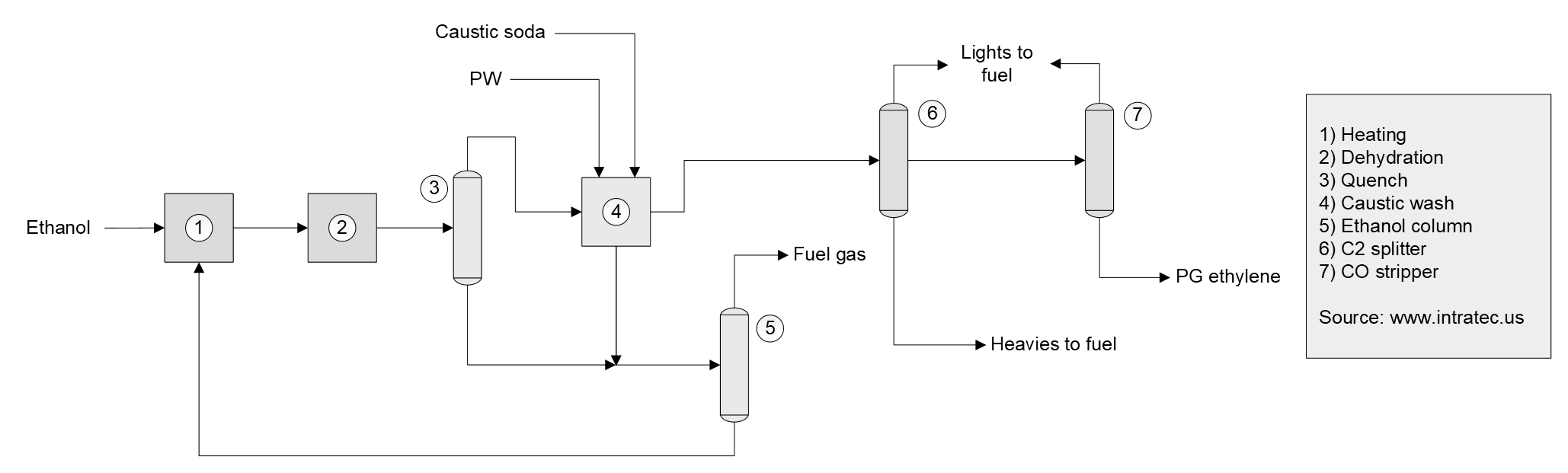

Ethylene Production Cost Report Process Schematic

The process under analysis comprises three major sections: (1) Reaction; (2) Quench, wash, and compression; and (3) Purification.

Reaction. Fresh ethanol feed is combined with recycled ethanol recovered downstream then vaporized. The stream is superheated in a furnace and fed to the first reactor. During reaction, the temperature drops and the output stream must be re-heated before entering the next reactor. This is repeated until the fourth reactor, where ethanol reaches 99% of conversion.

Quench, wash, and compression. The reaction outlet stream primarily consists of Ethylene and water, with some unreacted ethanol and impurities. The stream is quenched to condense most of the water and ethanol, compressed, washed with water and a caustic soda solution to remove oxygenated impurities, then dried. The ethanol content of all effluents produced is recovered and recycled to the reactors.

Purification. Two distillation columns are employed for further purification of the Ethylene. The first column is a C2 splitter, responsible for the removal of undesired hydrocarbons. The second column is a CO stripper, removing carbon monoxide and remaining light impurities. The polymer grade ethylene (99.9 wt%) product is obtained in the bottoms of the stripper column.

Report in PDF Format
Download & Explore Anytime
Access in Various Devices
Print & Read Comfortably
Share With Co-workers

Up-to-date Report

Professional report based on Q3 2024 economic data, ensuring timely evaluations.

Multiple Use Cases

Ideal for investment screening, feasibility studies, cost estimates, and research planning.

Proven Methodology

Developed using a consistent methodology honed over a decade, ensuring reliable cost analyses.

Report Editions

Compact



$799

USD

Select

Table of Contents


Features
  • Production Process Information
  • Process Consumptions
  • Labor Requirements
  • Plant Capital Cost Summary
  • Operating Cost Summary
  • Production Costs Datasheet
  • See All Features

 80 Pages | 22 Tables | 9 Images

Read-only Online PDF Format

Updated with Q3 2024 Data

Detailed



$1,599

USD

Select

Table of Contents


Features
  • Production Process Information
  • Process Consumptions
  • Labor Requirements
  • Plant Capital Cost Summary
  • Operating Cost Summary
  • Production Costs Datasheet
  • Plant Capital Cost Details
  • Operating Cost Details
  • See All Features

 90 Pages | 28 Tables | 13 Images

Downloadable PDF Format

Updated with Q3 2024 Data

Most Popular
Premium

Starting at

$2,699

USD

Select

Table of Contents


Features
  • Production Process Information
  • Process Consumptions
  • Labor Requirements
  • Plant Capital Cost Summary
  • Operating Cost Summary
  • Production Costs Datasheet
  • Plant Capital Cost Details
  • Operating Cost Details
  • Plant Cost Breakdowns
  • Plant Capacity Assessment
  • Process Flow Diagrams
  • Costs in Different Countries Add-on
  • See All Features

  • 107 Pages | 34 Tables | 22 Images
  • Print-enabled PDF Format Add-on
  • Updated with Q3 2024 Data
  • Share with Co-workers
  • Technical Support via Email

Content Highlights

Plant Capital Cost Summary

Summary outlining the capital cost required for building the Ethylene production plant examined.

Plant Capital Cost Details

Detailing of fixed capital (ISBL, OSBL & Owner’s Cost), working capital and additional capital requirements.

Plant Cost Breakdowns

Breakdown of Ethylene process unit (ISBL) costs and infrastructure (OSBL) costs; plant cost breakdown per discipline.

Operating Costs Summary

Summary presenting the operating variable costs and the total operating cost of the Ethylene production plant studied.

Operating Cost Details

Detailing of utilities costs, operating fixed costs and depreciation.

Plant Capacity Assessment

Comparative analysis of capital investment and operating costs for different Ethylene plant capacities.

Production Process Information

Block Flow Diagram, descriptions of process unit (ISBL) and site infrastructure (OSBL).

Process Consumptions

Raw materials and utilities consumption figures, by-products credits, labor requirements

Process Diagrams

Process flow diagrams (PFD), equipment list and industrial site configuration
