Succinic Acid Manufacture Technology Description

Online Succinic Acid Data: Manufacture, Uses and Applications

Intratec Chemical Process Library is the first free online encyclopedia of chemical process technologies. Our Library covers not only processes description themselves, but also the economics surrounding chemicals production, providing real-world knowledge on the production of several chemical commodities. Click here to check all chemicals covered.

In this page you will find free data about Succinic Acid, including:

  • What is Succinic Acid
  • How to make Succinic Acid
  • Succinic Acid uses and applications

This page presents brief synopsis of Succinic Acid production technology, describing, in a concise way, relevant technical and economic aspects. Each manufacturing process description will consist of:

  • Major process steps
  • Simplified, schematic flow diagram & key equipment
  • Important safety or environmental considerations
  • Economic perspective, comprising capital expenditures and/or operating expenses

All content from Intratec's Chemical Process Library was produced based on reports published by Intratec. To learn more about Succinic Acid production processes presented below and others examined in Intratec reports, click here.

Bio-Based Succinic Acid Manufacture

Succinic acid is an important industrial chemical that is traditionally derived from petroleum feedstocks. It can be used in several areas — from high-value niche applications, such as food, beverages and pharmaceuticals, to large-volume applications, such as plasticizers, resins and coatings. However, the current market for succinic acid is limited to specialized areas because of its costly production process.

Bio-based succinic acid, produced from renewable feedstocks, appears to be an alternative to the petroleum-derived chemical and may have advantages surrounding concerns about rising atmospheric greenhouse gas (GHG) concentrations and volatile crude oil prices. Bio-succinic acid is chemically equivalent to conventionally produced succinic acid, and is suitable for the same applications.

Technology Description

In the process depicted in the figure below, succinic acid is obtained via microbial fermentation of glucose from sugarcane juice. The process steps and equipment were compiled based on publically available information from the scientific literature.

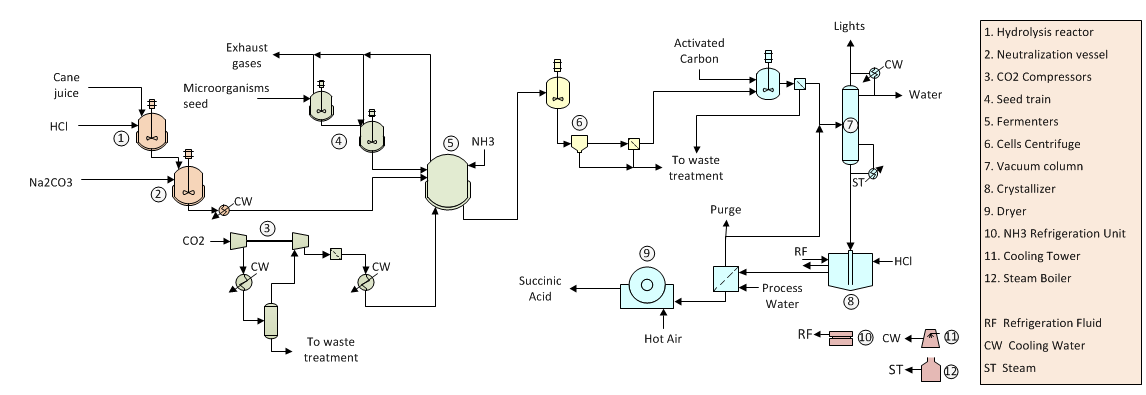

Bio-Succinic Acid Manufacture - Process Flow Diagram

Sugar Inversion

The sugar consumed in this fermentation-based process is glucose. It is obtained by the inversion of sucrose through its hydrolysis to glucose and fructose. This is achieved by subjecting the juice containing sucrose to an acidic medium by addition of hydrochloric acid (HCl). After inversion, the pH is adjusted with sodium carbonate (Na2CO3) and the stream is cooled before being sent to the fermentation step.


Glucose is converted to succinic acid through an anaerobic fermentation supplied with carbon dioxide. The microorganism culture is ...

Cell Separation

The fermentation broth is sent to ...

Recovery and Purification

In this stage, a decolorization process is ...

Economic Performance

An economic evaluation of the bio-based succinic acid process was conducted. The following assumptions were taken into consideration:

  • A 77,000 ton/yr unit erected on the U.S. Gulf Coast (the process equipment is represented in the simplifi ed flowsheet)
  • Storage of product is equal to 30 days of operation, and there is no storage for feedstock
  • Outside battery limits (OSBL) units considered: steam boilers, cooling towers and ammonium refrigeration system

The estimated capital investment (including total fixed investment, working capital and other capital expenses) is ...


To access this full article and its images create an account for free or login here.

This synopsis is based on the report Bio-Succinic Acid Production from Raw Sugar - Cost Analysis. (For more information, click here).
